moveable vacuum staion AEGS-01

demonstration and used machines for sale

moveable vacuum staion AEGS-01
moveable vacuum staion AEGS-01
moveable vacuum staion AEGS-01
moveable vacuum staion AEGS-01
machine number 01026
machine type AEGS-01
manufacturer Ankele
year of construction 11/2013
condition NEU

technical data

  • type vacuum pump:   VG-55       manufactor Speck
  • vacuum volum max.:  55m³/h
  • vacuum plug :  1 pcs  Connection pipe with internal thread R1 "or GEKA coupling and hydraulic hose 2TE DN25 Length 700mm
  • fresh water connection: R1/2"
  • water outlet to the water tank :  R1 1/4"
  • cooling water connection to the cooling coil: R3/8"

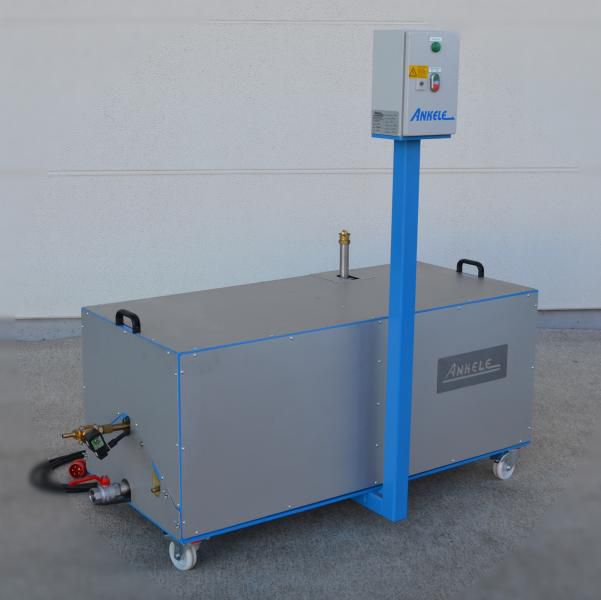

Mobile vacuum station Type: AEGS-01 suitable for use and support at a degassing opening on the extruder or tool as well as for assisting in vacuum forming.

Advantage: Due to the built-in separation tank upstream of the pump, can be sucked off also dirt-laden gases and/or air mixtures.

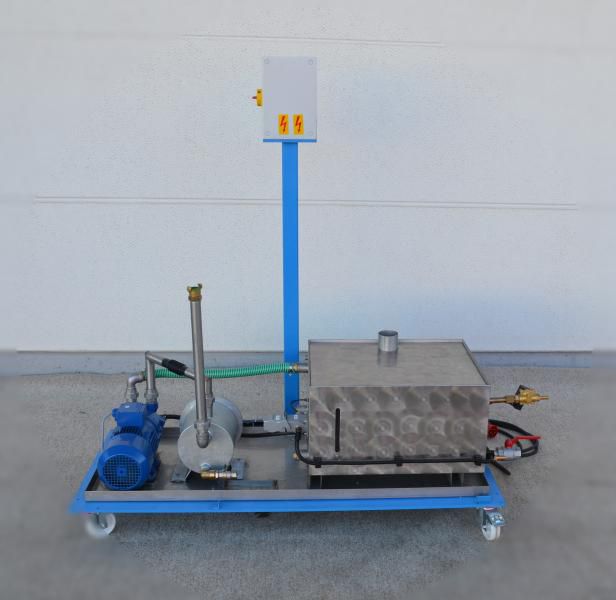

Machine consisting of:

  • a water ring vacuum pump mounted on a welded and painted steel base frame with cpl. connected supply and cooling system
  • a VA service water separator and storage tank with fresh water connection, level switch and drain cock for easy daily cleaning
  • a float valve / switch for level monitoring and, if necessary, a switch-off
  • a cooling coil made of hde-finned tube installed and removable in the separating storage tank
  • an additional vacuum separator tank made of steel (hot-dip galvanized) in front of a vacuum pump to separate (diffuse) the suspended matter in the extracted air and / or air / water mixture
  • an electrical switching / control cabinet for vacuum pump and tank monitoring
  • a removable emission housing / subassembly for avoiding / reducing the noise emission by the vacuum pump

Price basis for negotiation (please contact us for detailed Information)

Prices: ex works, without packaging and transport

Delivery time and availability : immediately available
                                                        Machine is available for inspection at Maulbronn factory.
                                                        You are welcome to make an appointment with us.

Payment: net before delivery of the components or the machine

Warranty: Used and demonstration machines are generally excluded from any warranty. It is bought as seen. A guarantee can be offered in individual cases.
