Mini Flat Roller
Ankele - Mini Flat Roller for pull off flat profiles

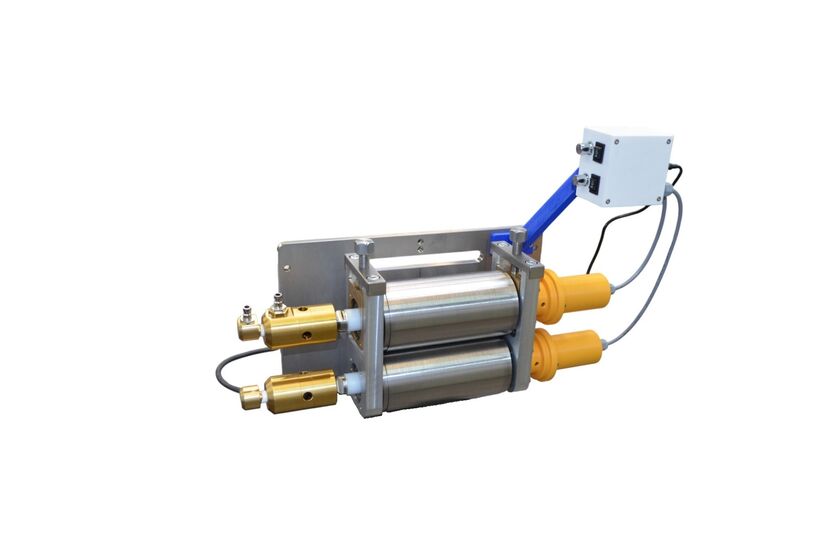

Flat roll unit type: AFR-120V1 for hot forming and profiling of flat films or flat strips
| Machine type | AFR-120V1 | |||
|---|---|---|---|---|
| maximum profile width | 120mm | |||
| Standard roller Ø | 80mm | |||
| possible translations | 10rpm | 20 rpm | 50 rpm | 100 rpm |
| max. force | ~ 100 N | ~ 50 N | ~ 25 N | ~ 10N |
| max. speed | 2,5 m/min | 5 m/min | 12,5 m/min | 25 m/min |
Technical Data:
| Technical Data | |
|---|---|
| drive technology | 2 high-torque DC geared motors |
| drive control | Control via potentiometer |
| direction of rotation | Reversible rotation (clockwise or counterclockwise) |
Details
- The mini flat roll unit is used for simple pre-cooling and thermoforming of flat films and tapes made of TPU or TPE up to a width of 120mm and a thickness of 4mm.

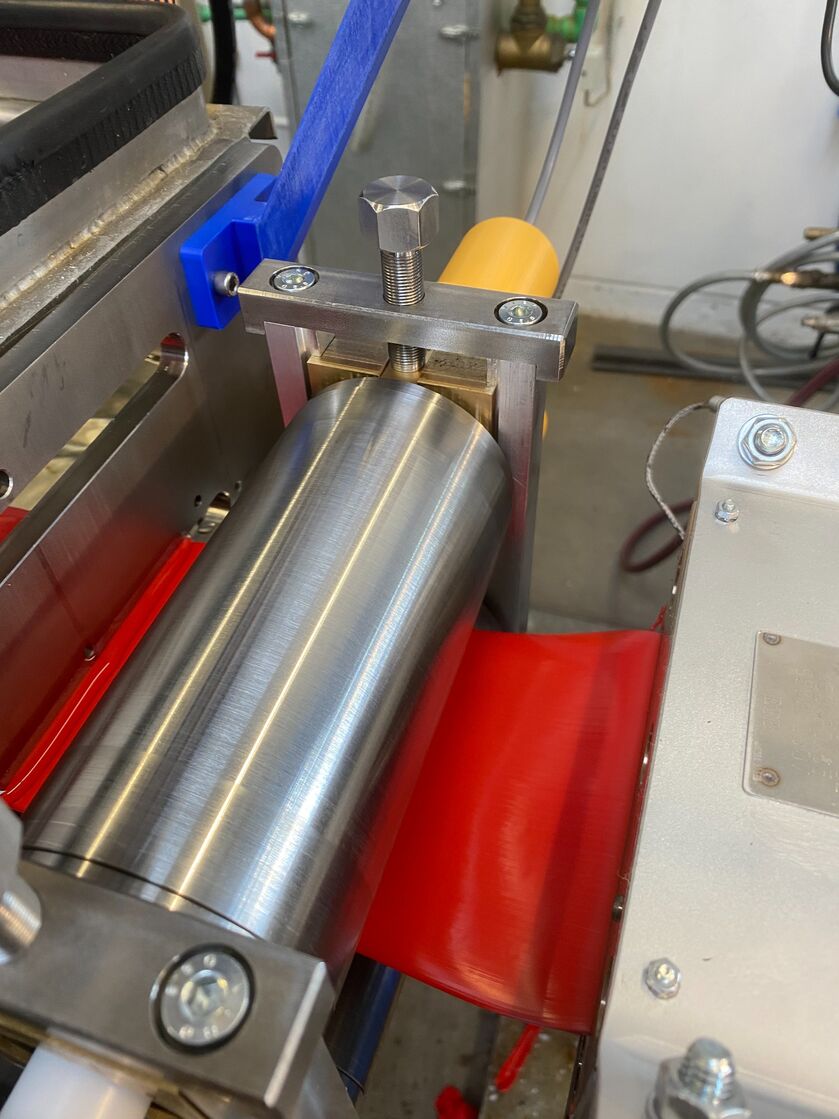

- The hot, still plastic extrusion material is guided through the adjustable rollers, shaped, and then directed into the cooling bath.
- On request, the rollers can be provided with a toothed or knurled profile, which allows for the application of a profiling to the product.
