Double drum puller

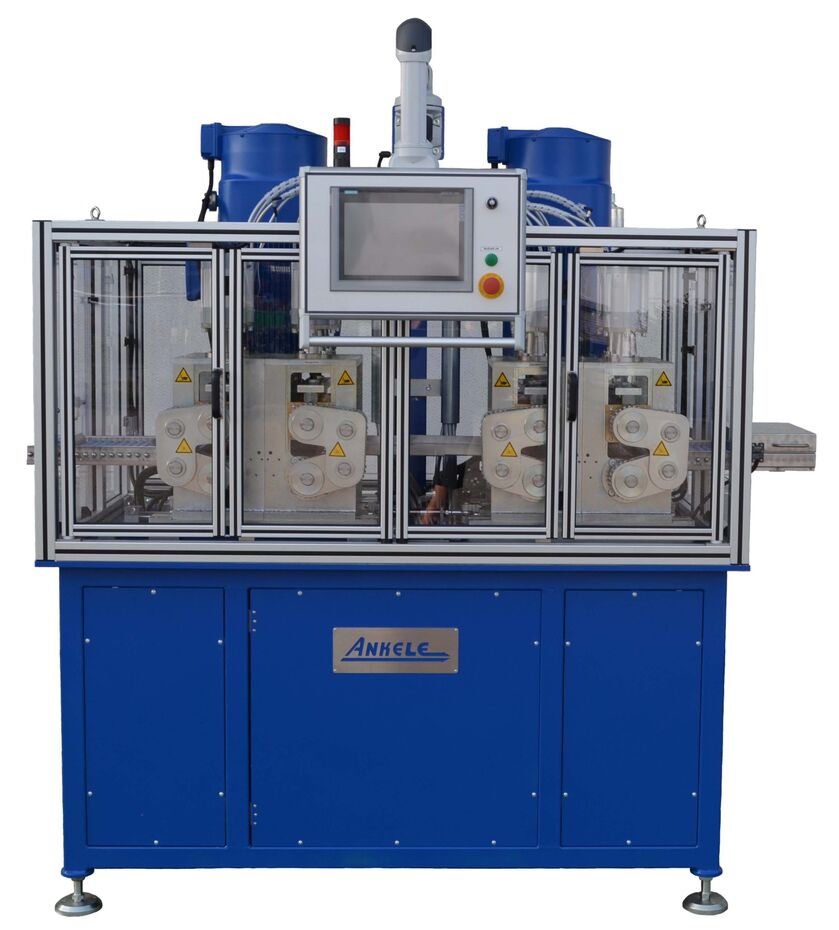

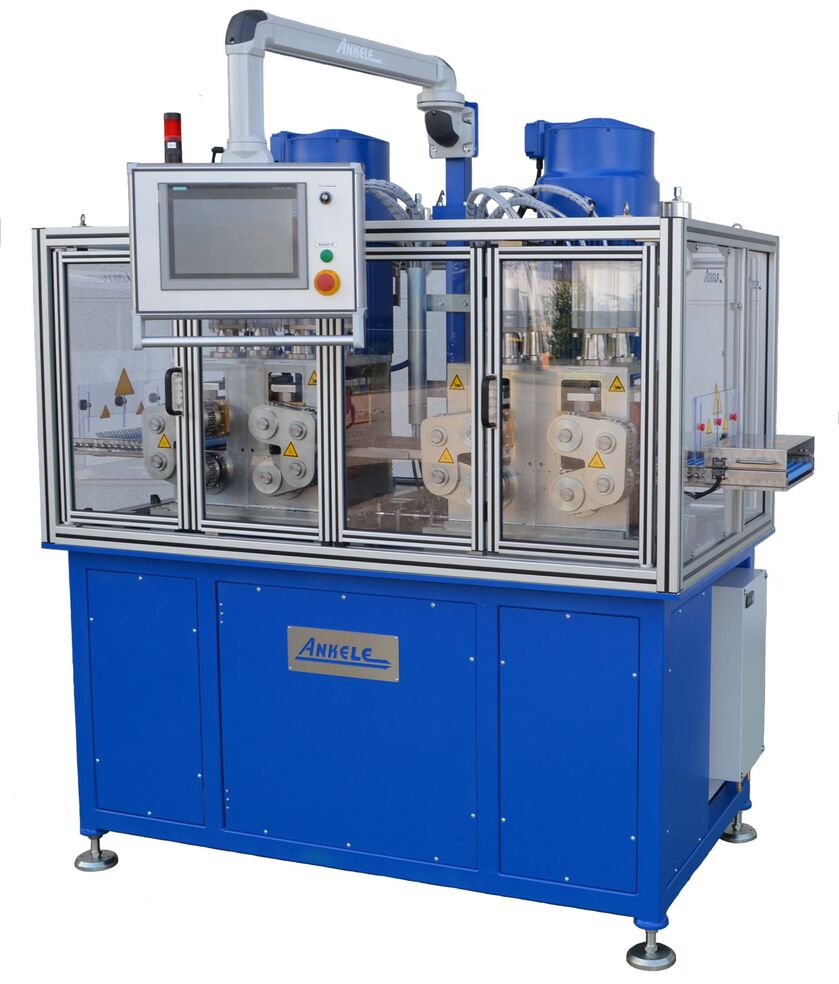

Ankele - double drum puller
pull-off units for pulling and stretching extruded plastic profiles, pipes and strands
Technical DATA
| Maschinentype | ADWA 300-110-Duplex |
|---|---|
| contact-length | 300 mm |
| roller diameter | 110 mm |
| pull-off speed | 3 - 53 m/min. or customer request |
| pull-off force | 15.800 N or customer request |
Details
- > stable base frame made of steel tubes
> height adjustable via machine feet
> two separately driven take-off units, each with four coated pressure/take-off rollers
> take-off II adjustable via linear guide
> Ankele-Siemens machine and system control
> integrated length measuring system
> roller take-off pairs can be operated at different speeds, making it possible to stretch the strands
