Ankele - plate/disc - coiler type ATW 1000-950
Plate/disc - coiler type ATW 1000-950 compact machine with a integreated contactless dancer control.
- A mobile welded support with rubber coated machine stands, each machine stand is installed with a star-handle
- A handle attached at the support
- One in steps of 15° from horizontal to vertical situation adjustable VA coiler table with a diameter of 1000mm
- Customized rewinding stand core admission
- Role inlet guidance at the machine rack
- Foot potentiometer for the regulation of the winding speed
- Change over switch for connection to contactless dancer control
- switchgear cabinet mounted in the machine rack
- Torque adjustable over potentiometers in the switchgear cabinet
- speed adjustable over a potentiometer on the switchgear cabinet (alternative contactless dancer control)
- Spur wheel AC worm gear engine with Vector age. Servo regulation (additional price)
- Selector switch at the switchgear cabinet for left - clockwise rotation
- Mounting plate for foot potentiometers and EMERGENCY STOP at the rack

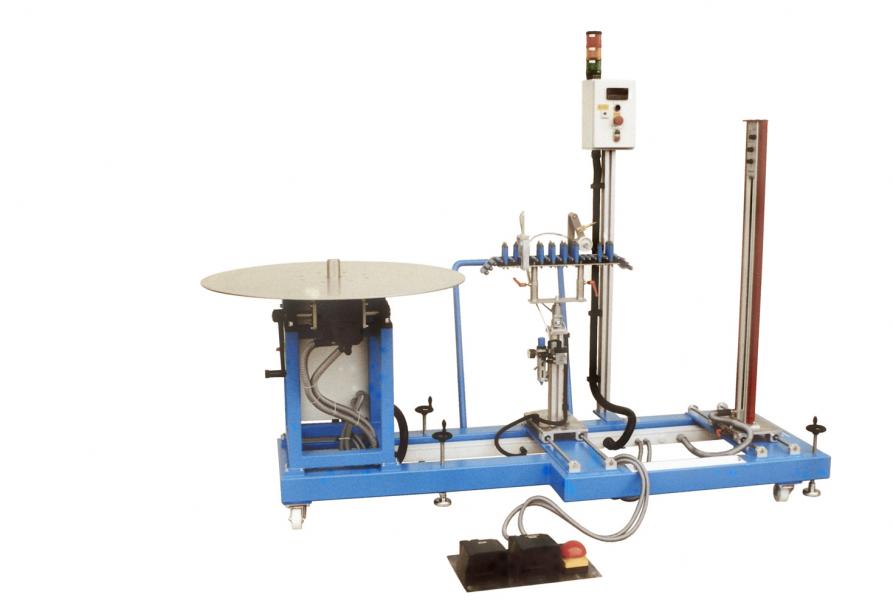

plate/disc - coiler type ATW 1000-950

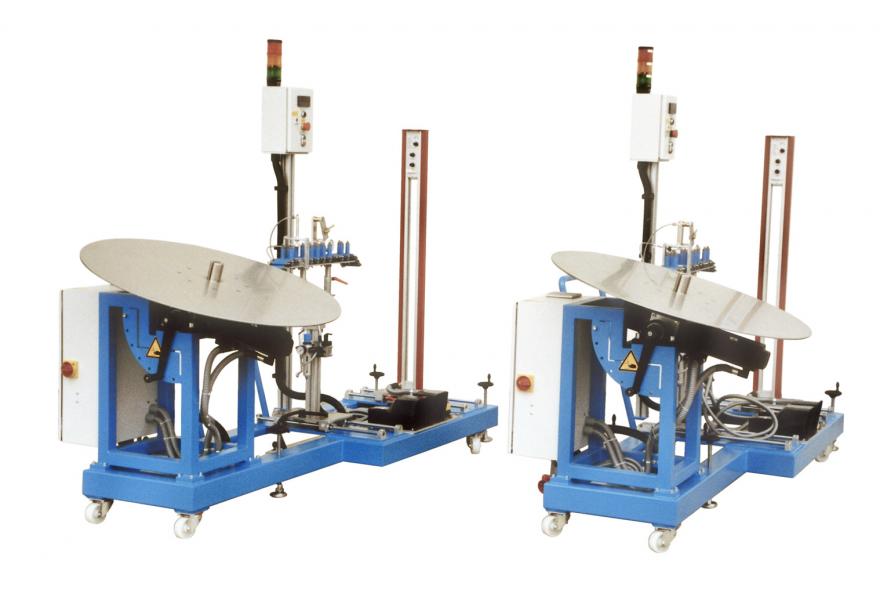

plate/disc - coiler type ATW 1000-950
